Mower Deck Full Rebuild Kit - Left Hand Discharge Models
For all J, K, L, M, N 38/40, 44, 45, 46/48 models/cutting width. This kit works on all mower decks used on Case Ingersoll 200, 400 and 600 series tractors that have the discharge chute on the LEFT side or rear of the mower deck.

Save money AND time by buying this kit instead of each component individually!

We took the time to put this kit together that includes all necessary parts to do a full and complete rebuild job on your mower deck. This is basically a plug and play kit, we DO NOT include the mower blades as most times blades just need resharpening. If you do need blades there is a option at check out or please look in our store to pick the right blades for your size deck.

Click on this link to get to our instructional video on how to completely rebuild your LEFT hand mower deck. HERE

This kit will come with all the needed items to completely rebuild your LEFT hand discharge Case Ingersoll mowing deck. OEM or Upgraded Top Quality Replacements.

Included in this kit will be:
(1) C15604 Center Spindle
(2) C15763 Outboard Spindle
(3) C10810 Spacer
(3) C25541 Spacer
(3) C25543 Dust Cap
(3) C43846 Cast Hubs
(6) C28971 Bearings
(2) C26736 "5" Rear Wheels OR (dependig on deck model)
(2) C26737 "6" Rear Wheels
(3) C49410 Pulley's (Currently, all pulleys are heavy-duty cast iron replacements from Ingersoll)
(4) 126-19 Woodruff Keys
Cross deck pulley belt - C23810 or C22708 or C22707 (Sizing option at check out for your specific deck size you note)
Upgraded grade 8 hardware needed to mount hubs (12 bolts and lock washers) 192-201,113-206
Upgraded grade 8 hardware needed to mount mower blades (6 bolts and washers) 113-206,192-201

ALSO, THE BELOW OPTION will be offered at additional costs if needed to complete your job at checkout:
OPTION- For Engine PTO to deck OEM Belt
OPTION- To add 3 new blades to your kit

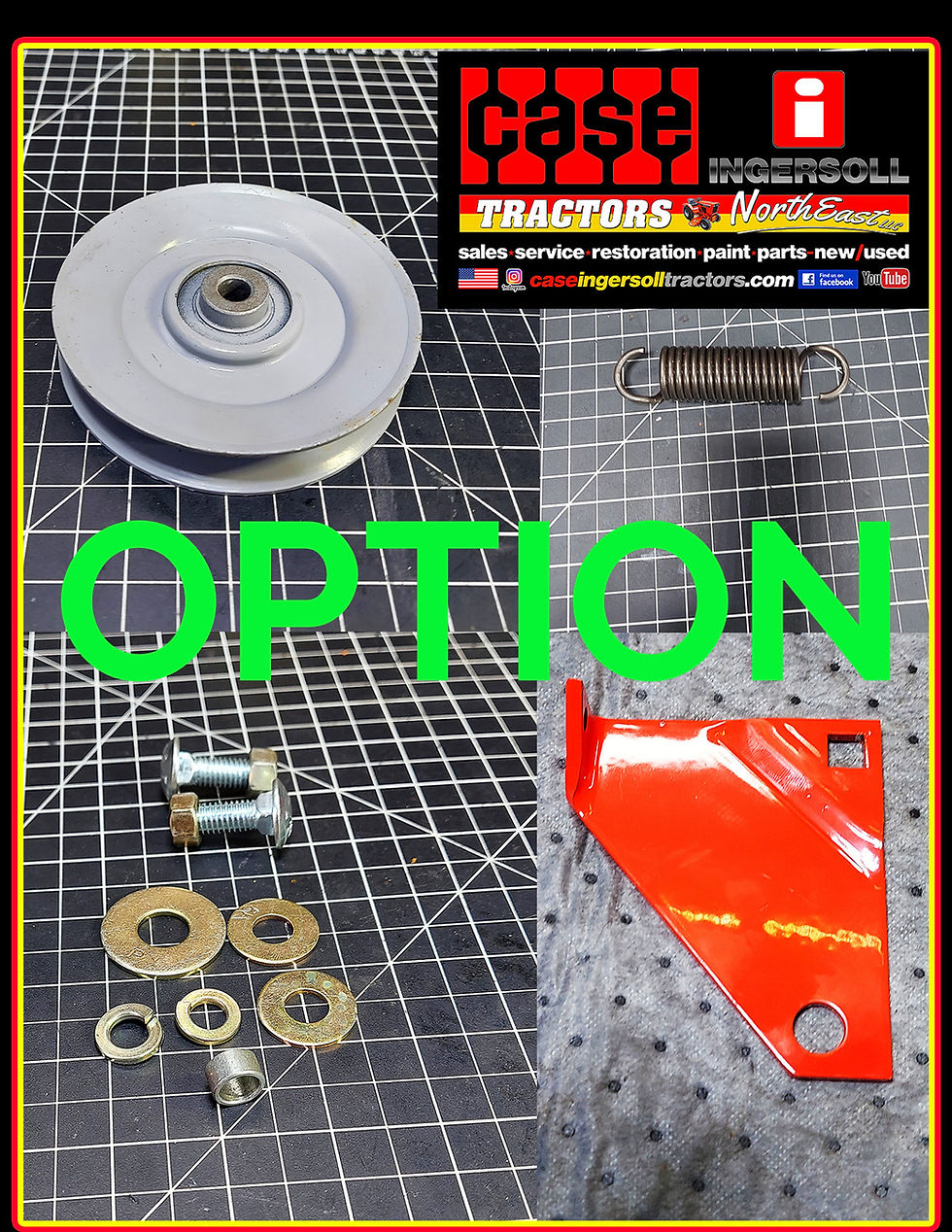

OPTION- Idler System Full Rebuild kit, which will include the following OEM parts and/or replacements or upgrades. Much of the hardware has been upgraded to grade 8. We highly recommend doing this idler system rebuild. Often, people just replace their idler pulley, but the majority of the time, the idler bracket and bushing/spacer are very worn along with the hardware. Therefore, the idler system does not function correctly and/or wears out the new pulley very fast along with belts. This is why we suggest adding this kit to do a complete full mower deck rebuild that will be hassle free for many, many, many years. Kit Includes:
1 C25080 BRACKET - IDLER
1 C31606/C14482 SPRING - IDLER Replacement (IF OEM Springs are currently unavailable, Spring is a suitable replacement we have found)
1 C14768 SPACER - IDLER BRACKET
1 C12251 PULLEY - IDLER
111-371 BOLT
1 195-105 WASHER
2 195-525 WASHER
2 131-1181 NUT - LOCK
2 111-366 BOLT

BE SURE TO CHECK OUT OUR MULE DRIVE BUSHIN REBUILD KIT AN DMULE DRIVE PULLEY KITS ON OUR SITE.
NOTE: Photos may not contain all parts used for this kit, same photos are used for multiple kits.
