This is our custom designed HEAVY DUTY Upgrade
 Replacement For  Tie Rods C25856, C21530, C14334, C43862 Tie Rods for all Case Ingersoll 200, 3000 series manual steer small wheel garden tractors.  This is the rod between your front two tires. This rod has threaded MALE ENDS. One side is right-hand, one side left-hand thread. We also increased the amount of threads to give you more adjustments if needed in some situations. INCLUDED are 2 new jam nuts. The tread size on this rod is the same as all OEM rods were.
This heavy-duty rod replaces the light-duty rod used in kit number C43862. It can replace the C21530 rod (female threaded tie rod) IF you ADD the correct female rod end joints that are offered as an option at check out here or are in our front-end upgrade kits. Use joint part numbers C44640 and C44641 female 'joint' ends (we highly recommend using our upgraded Heim joints and/or front end). Click HERE
 to get to our master front-end upgrade kit

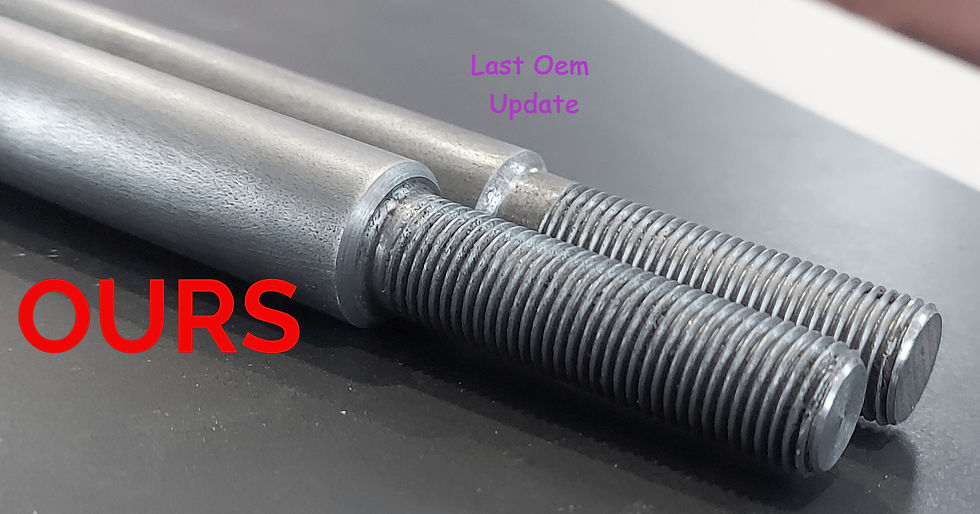

As all Case Ingersoll owners know, the tie rods and drag links left a lot to be desired, even with the "improved" versions Case Ingersoll released over the years. Yes, the latest OEM version was much better than the multiple earlier versions. It still is not strong enough as we see many come in every year bent, broke, damaged. These should be 100 percent STRAIGHT! If not, a slight bend greatly affects steering performance and safety! Our rods are much. much stronger and bigger, made from a strong steel formula and with a larger diameter. We feel we found the best size to balance ultimate strength and life but still not too strong or too big where if serious impact or force is put on them that they still will bend before other expensive components will fail first. They need to be rugged and durable, but also need to bend before a pricey spindle or steering gear, etc, breaks. This a buy one for the life of the tractor quality rod. Where at this point, many have replaced at LEAST one but often many drag links and tie rods over the tractors life.... Besides being a performance improvement, they really look great and right at home with the rest of these beefy heavy-duty machines they are a classy perfect match, not out of place or overdone! Also, a perfect pair with our heavy-duty greaseable heim joints!

BE SURE TO CHECK OUT THE MATCHING DRAG LINK UP GRADE  HERE
Check out our video on these rods as well as our install videos on rod end installs and full tractor alignment.

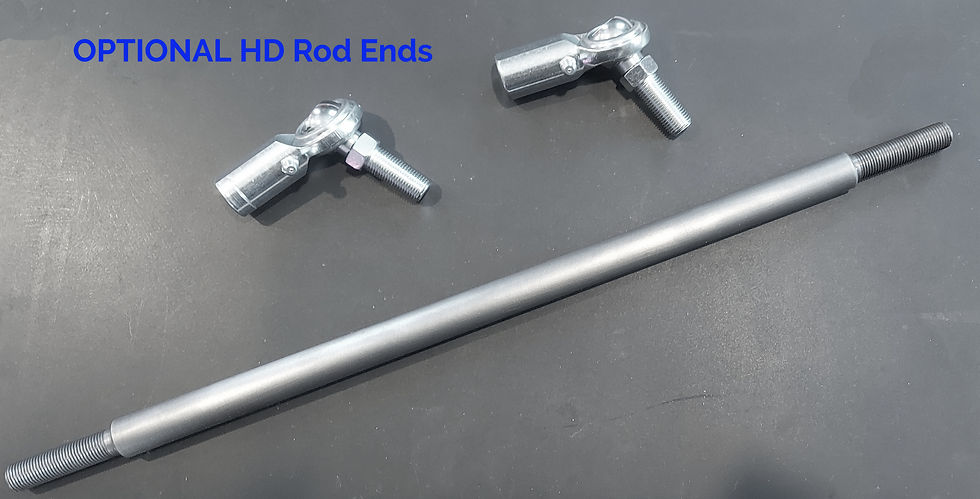

OPTION- We recommend you use our upgraded heim joint ends/front end UPGRADE KIT with our joints that replace part numbers C44640 & C44641
OPTION - Add matching HEAVY DUTY UPGRADE "Drag Link"
OPTION - To add new half-moon steering sector gear.

NOTE- Shaft may come unpainted
Due to length, we have to ship the item in a larger box
