Case Ingersoll C25256 A70202, C16852,
SPECIFICATIONS:
Starter-Generator - Delco "STYLE"
 12 VOLT, 15 AMP
ROTATION: ""CLOCKWISE""
NO PULLEY INCLUDED, YOU NEED TO SWAP YOURS

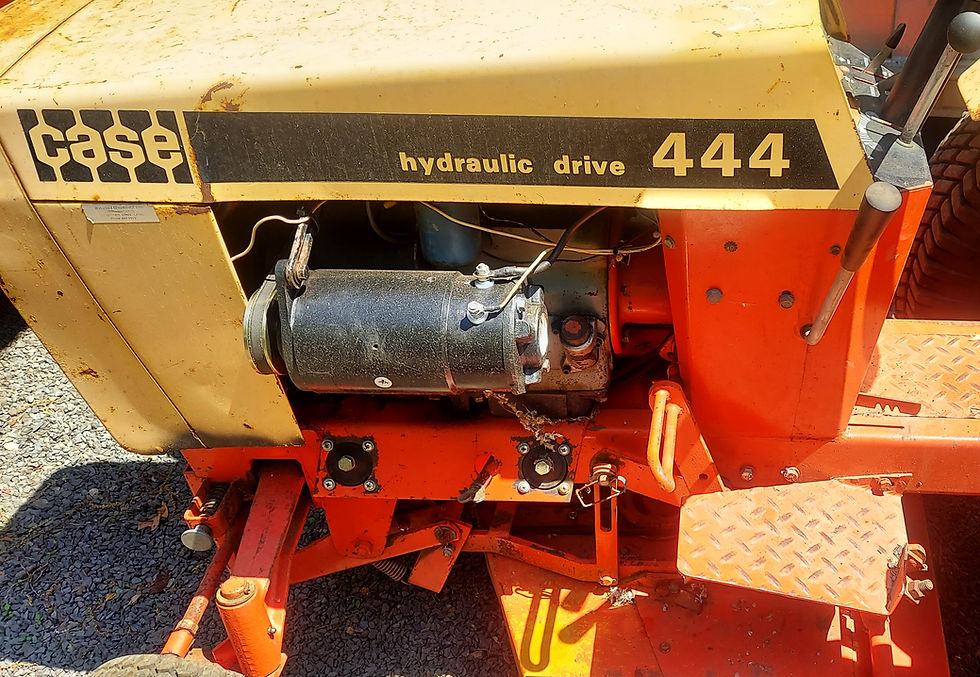

This is a high-quality aftermarket (It is NOT made in China)  "Delco style" starter generator used on many, many Kohler-equipped machines and brands. This quality option is much more affordable than spending $350 to $550 on other aftermarket and OEM options. We use this product at our own shop. It fits many brands of machines, Including Case Ingersoll Kohler powered 210, 220, 222, 224, 444, 644, 155,195 WITH A STARTER GENERATOR THAT IS ON THE SIDE OF THE MOTOR AND USES A BELT TO START THE ENGINE. NOT A DIRECT DRIVE STARTER FOUND ON LATER MODELS.  Used on many Kohler K241, K301, K321, K341, K361 as well as other brand engines. If you have a Case Ingersoll modele listed this, is the starter gen you need.

OPTION- To a new replacement voltage regulator we HIGHLY recommend replacing your voltage regulator at the same time to protect your new exspensive starter generator and electrical syestem.

 If using on other brand machines check listing specs, info and rotation direction.
CHECK ROTATION OF YOU STARTER GENERATOR THIS ONE TURNS CLOCKWISE WHEN VIEWED FROM THE FRONT PULLEY ON STARTER/GEN.

This is a very easy and fast install, Pay attention to where your wires were hooked up onyour old starter as to put them on the new one in the correct posts. You have to remove and swap your old pulley as well. There is a new spacer and nut included, check packageing. The spacer goes under the pulley on most applications.
We offer options at check out to Add a new belt to your order. Now is a good time
We offer a option and highly recommend changing your Solenoid at this time when doing the starter gen.
We offer a option and reccomend changing your key switch at this time, we often see they key switches fail realativly right around the same time starter generators do. The last thing you want is a faulty key switch or solenoid failing stuck sending starting current to your generator where you can't stop it.
We offer an option and highly reccomend our inline fuse kit option. You can use this either and/or in both the following set ups, in the wire feeding the key switch power as there shouls always be one here on all tractors. You can also add one on the signal line feeding voltage to the solenoid to trigger starter/generator.

MAY BE REPLACEMENT FOR OR COMPATIBLE WITH WITH THE FOLLOWING-
INTERNATIONAL: International Cub 185 Lo-Boy 74-76, International Cub 184 Lo-Boy 77-80International Cub 154 Lo-Boy 71-74
TELEDYNE - WISCONSIN:
S-8 67-72, S-12D 71-72, S-10D 71-72, HAENL 61-62, AENL 67-69
SIMPLICITY: Soveriegn 67-68, Landlord 63-68, 725 Garden Tractor 59-64
SEARS  ROPER: Suburban 8 65-66, Suburban 12 65-70, Suburban 10 65-68, Custom 600 65-68
MASSEY FERGUSON: MF-10 66-66
JACOBSEN: Chief 53036 65-66, Chief 53035 63-64, Chief 1200 67-68, Chief 1000 67-74, 84 Turf King 78-78, 76 Turf King 78-78, 70 Trimmer 78-78
CUSHMAN: Truckster 66-67, Trophy 66-67, Haulster 68-74
Director 66-68,
lfster GC-400 66-74, lfster GC-300 71-74
 MAY Replace Delco Remy Mfg- 1101432, 1101945, 1101960, 1101970, 1101980, 1101984, 1101992, 1101993, 1101995, 1101863, 1101864, 1101874, 1101926, 1101928, 1101940, 1101949, 1101953, 1101961, 1101965, 1101971, 1101978, 1101689, 1101875, 1101870, 1101973, 1101988, 1101693, 1101698, Delco 1101432, Delco 1101689, Delco 1101693, Delco 1101698, Delco 1101863, Delco 1101864, Delco 1101870, Delco 1101874, Delco 1101875, Delco 1101919, Delco 1101926, Delco 1101928, Delco 1101940, Delco 1101945, Delco 1101949, Delco 1101953, Delco 1101961, Delco 1101965, Delco 1101970, Delco 1101971, Delco 1101973, Delco 1101978, Delco 1101980, Delco 1101992, Delco 1101995
MAY REPLACE 9193, 9185, 9186, 9192, 9198, 9199, 340-42, 340-42A, 340-44, 340-48, 340-48A, 340-59, 340-67, 340-69, 92-01-3144, 92-01-3145, 72-01-9185, 92-01-3149, 92-01-3150
